PowMr 3000VA 2400W Hybrid Solar Inverter 24VDC Input 220VAC PowMr 3000VA 2400W Hybrid Solar Inverter 24VDC Input 220VAC

  • Brand : PowMr
  • Product Name : PS-3K
Power Options:
  • 3000VA
  • 5000VA
WHS Location:
Share this:

Product Description

Features:

  • Pure sine wave inverter

  • Built-in PWM solar charge controller

  • Configurable input voltage range for home applicances and personal computers via LCD setting

  • Configurable battery charging current based on applications via LCD setting

  • Configurable AC/Solar charger priority via LCD setting

  • Compatible to mains voltage or generator power

  • Auto restart while AC is recovering

  • Overload/over temperature/ short circuit protection

  • Smart charging system optimizes battery performance

  • Cold start function


Figure 1


1 LCD display

2.Status indicator

3.Charging indicator

4.Fault indicator

5.Function buttons

6.Power on/off swtich

7.AC input

8.AC output

9.PV input

10.Battery input

11. Circuit Breaker

12. RS232 communication port

13.Parallel communication cable (only for parallel model)

14.Current sharing cable (only for parallel model)

15.Dry Contact

What's in the package:

The unit x 1

User Manual(English) x 1

Communication cable x 1

Software CD x 1

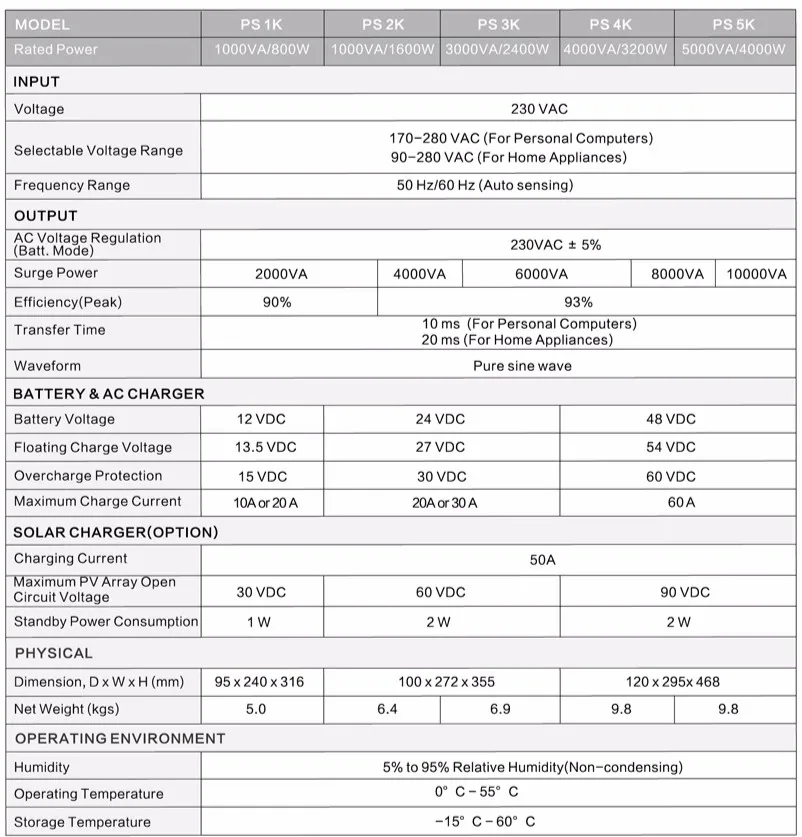

Parameter

PS (2)
